Product features

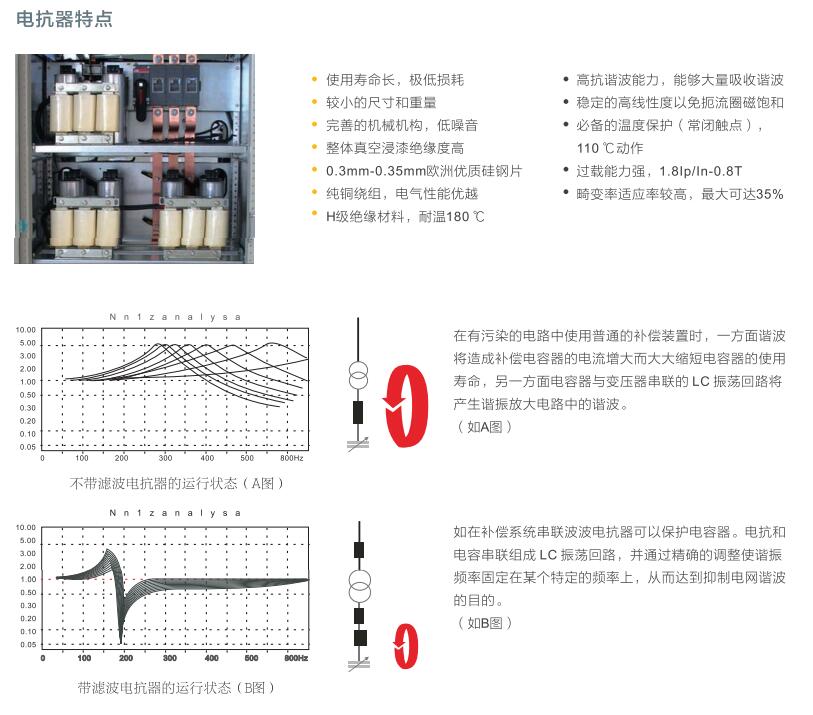

Energy is the driving force for human progress, and electricity is the main force of energy today. Our goal is to effectively use it, and reducing reactive current through LC can help save electricity. The nonlinear current generated by the extensive use of electronic devices nowadays is affecting the power quality of the power grid in the form of harmonics. These harmonics pollute the power grid, causing resonance in transformers and capacitors, damage and misoperation of transmission and distribution components such as circuit breakers, interference with measurement and control systems, interference with computers and electric transmissions, and distortion of resonant voltage, These harmonic hazards can be effectively improved or avoided in reactive power compensation systems through series reactors. The tuning frequency of the tuned reactance capacitor bank must be lower than the main low order harmonic frequency present in the system, so that reactive power can be compensated at the fundamental frequency (50Hz) without the risk of harmonic resonance.
