Product features

Application scope
·The module is suitable for industrial and mining enterprises, harmonic sites, fast compensation, and compact spaces,
·The module adopts silicon controlled module with advanced technology and stable and reliable performance;

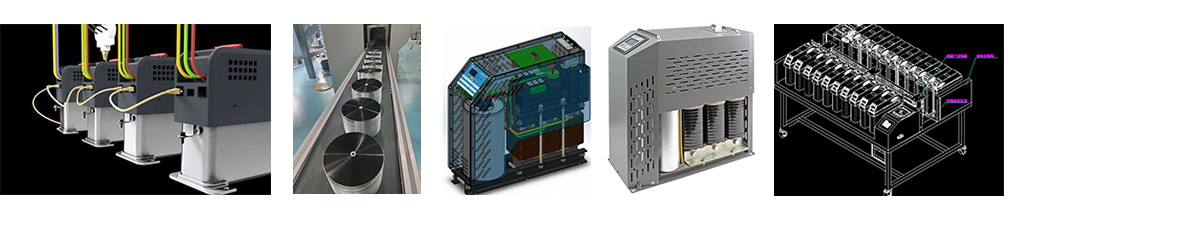

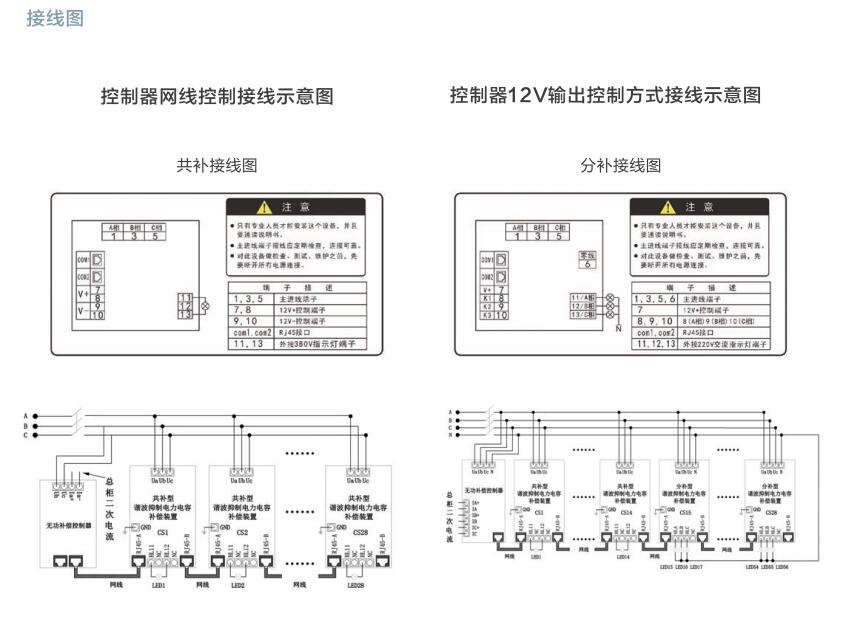

·Supports two methods: DC12V control or RJ45 network cable control:


·Fully enclosed design with modular structure, flexible combination, convenient expansion, drawer style design, and 10s quick fixed installation.

·The module adopts a negative pressure exhaust design, which quickly and continuously reduces the temperature of the heating element;


·Support 4G operation and maintenance platform.

Product features
·Modular integrated design, refined components matching each other, compact size, fast installation, simple wiring, and convenient maintenance

·Capacitors are spatially isolated from series reactors, and the heat generated by the reactors does not radiate to the capacitors, resulting in natural and good heat dissipation of power capacitors.

·Adopting a unique patented structure with external capacitors, capacitors can be quickly replaced inside the cabinet without the need to dismantle or replace the entire machine module, making maintenance convenient.

·A pulsating negative pressure heat dissipation system equipped with patented technology, with air negative pressure convection cooling. The temperature rise of the reactor during operation does not exceed 20K. Intelligent networked communication, with direct insertion of network cables, automatically forming a master-slave structure, and multiple networked machines running in parallel can be connected to power distribution terminals. Suppress and reduce the harmonic content of the power grid, with different reactance rates corresponding to different frequency harmonics.

·Zero crossing switching, zero voltage differential moment switching, zero current point switching, no surge, no oscillation, no impact

·When the voltage exceeds the limit, the current exceeds the limit, the capacitor exceeds the temperature, and the reactor exceeds the temperature, the module automatically exits the compensation circuit until all parameters return to normal.

·Data monitoring function, real-time monitoring of distribution network parameters, capacitor temperature, reactor temperature, compensation circuit current, and can be transmitted through RS485 interface.

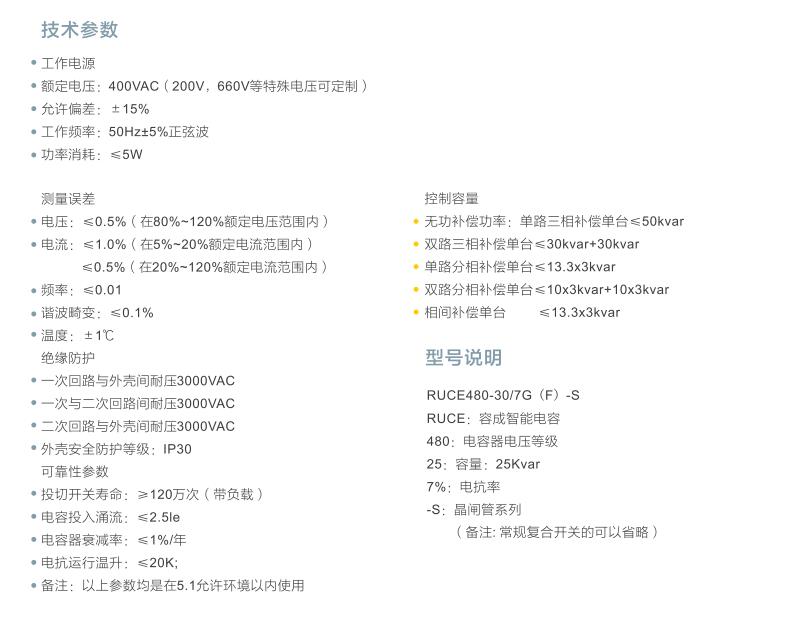

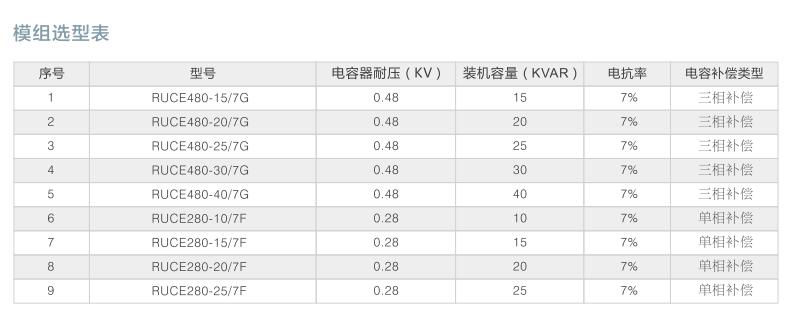

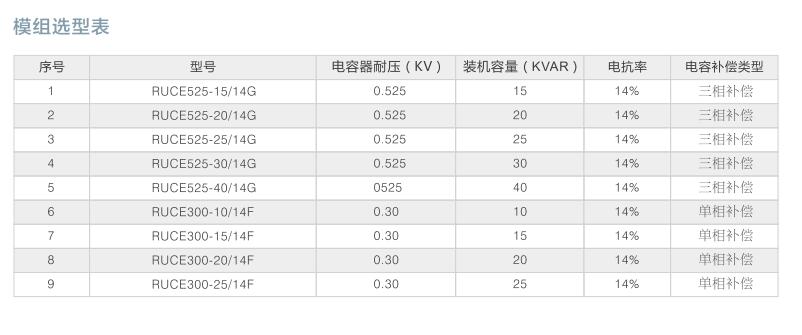

·Each module can be selected with various specifications and capacities such as single path co compensation, dual path co compensation, single path sub compensation, dual path sub compensation, and a total of one compensation and phase to phase compensation.



Usage environment
Environmental temperature: -25C~+40C

Relative humidity: ≤ 90% at 25C and ≤ 50% at 40C

Altitude: s2000m

There are no flammable or explosive media present in the surrounding environment, no conductive dust or corrosive gases present, and no violent vibrations occur
